PluginWrapper is a simple base class for adapter plugins. More...

#include <vamp-hostsdk/PluginWrapper.h>

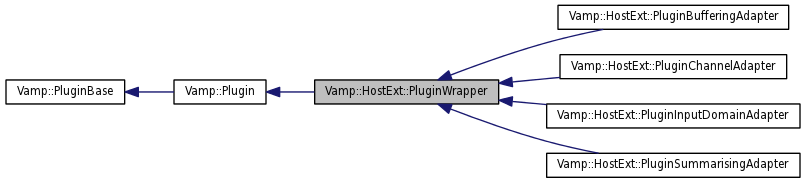

Inheritance diagram for Vamp::HostExt::PluginWrapper:

Public Types
enum	InputDomain { TimeDomain, FrequencyDomain }
typedef std::vector < OutputDescriptor >	OutputList
typedef std::vector< Feature >	FeatureList
typedef std::map< int, FeatureList >	FeatureSet
typedef std::vector < ParameterDescriptor >	ParameterList
typedef std::vector< std::string >	ProgramList
Public Member Functions
virtual	~PluginWrapper ()
bool	initialise (size_t channels, size_t stepSize, size_t blockSize)
	Initialise a plugin to prepare it for use with the given number of input channels, step size (window increment, in sample frames) and block size (window size, in sample frames).
void	reset ()
	Reset the plugin after use, to prepare it for another clean run.
InputDomain	getInputDomain () const
	Get the plugin's required input domain.
unsigned int	getVampApiVersion () const
	Get the Vamp API compatibility level of the plugin.
std::string	getIdentifier () const
	Get the computer-usable name of the plugin.
std::string	getName () const
	Get a human-readable name or title of the plugin.
std::string	getDescription () const
	Get a human-readable description for the plugin, typically a line of text that may optionally be displayed in addition to the plugin's "name".
std::string	getMaker () const
	Get the name of the author or vendor of the plugin in human-readable form.
int	getPluginVersion () const
	Get the version number of the plugin.
std::string	getCopyright () const
	Get the copyright statement or licensing summary for the plugin.
ParameterList	getParameterDescriptors () const
	Get the controllable parameters of this plugin.
float	getParameter (std::string) const
	Get the value of a named parameter.
void	setParameter (std::string, float)
	Set a named parameter.
ProgramList	getPrograms () const
	Get the program settings available in this plugin.
std::string	getCurrentProgram () const
	Get the current program.
void	selectProgram (std::string)
	Select a program.
size_t	getPreferredStepSize () const
	Get the preferred step size (window increment -- the distance in sample frames between the start frames of consecutive blocks passed to the process() function) for the plugin.
size_t	getPreferredBlockSize () const
	Get the preferred block size (window size -- the number of sample frames passed in each block to the process() function).
size_t	getMinChannelCount () const
	Get the minimum supported number of input channels.
size_t	getMaxChannelCount () const
	Get the maximum supported number of input channels.
OutputList	getOutputDescriptors () const
	Get the outputs of this plugin.
FeatureSet	process (const float const inputBuffers, RealTime timestamp)
	Process a single block of input data.
FeatureSet	getRemainingFeatures ()
	After all blocks have been processed, calculate and return any remaining features derived from the complete input.
template<typename WrapperType >
WrapperType *	getWrapper ()
	Return a pointer to the plugin wrapper of type WrapperType surrounding this wrapper's plugin, if present.
virtual std::string	getType () const
	Used to distinguish between Vamp::Plugin and other potential sibling subclasses of PluginBase.
Protected Member Functions
	PluginWrapper (Plugin *plugin)
Protected Attributes
Plugin *	m_plugin
float	m_inputSampleRate

Detailed Description

PluginWrapper is a simple base class for adapter plugins.

It takes a pointer to a "to be wrapped" Vamp plugin on construction, and provides implementations of all the Vamp plugin methods that simply delegate through to the wrapped plugin. A subclass can therefore override only the methods that are meaningful for the particular adapter.

Note:: This class was introduced in version 1.1 of the Vamp plugin SDK.

Definition at line 62 of file PluginWrapper.h.

Member Typedef Documentation

typedef std::vector<OutputDescriptor> Vamp::Plugin::OutputList [inherited]

Definition at line 327 of file vamp-sdk/Plugin.h.

typedef std::vector<Feature> Vamp::Plugin::FeatureList [inherited]

Definition at line 385 of file vamp-sdk/Plugin.h.

typedef std::map<int, FeatureList> Vamp::Plugin::FeatureSet [inherited]

Definition at line 387 of file vamp-sdk/Plugin.h.

typedef std::vector<ParameterDescriptor> Vamp::PluginBase::ParameterList [inherited]

Definition at line 203 of file vamp-sdk/PluginBase.h.

typedef std::vector<std::string> Vamp::PluginBase::ProgramList [inherited]

Definition at line 225 of file vamp-sdk/PluginBase.h.

Member Enumeration Documentation

enum Vamp::Plugin::InputDomain [inherited]

Enumerator:

TimeDomain
FrequencyDomain

Definition at line 152 of file vamp-sdk/Plugin.h.

Constructor & Destructor Documentation

virtual Vamp::HostExt::PluginWrapper::~PluginWrapper ( ) [virtual]

Vamp::HostExt::PluginWrapper::PluginWrapper ( Plugin * plugin ) [protected]

Member Function Documentation

bool Vamp::HostExt::PluginWrapper::initialise	(	size_t	inputChannels,
		size_t	stepSize,
		size_t	blockSize
	)		`[virtual]`

Initialise a plugin to prepare it for use with the given number of input channels, step size (window increment, in sample frames) and block size (window size, in sample frames).

The input sample rate should have been already specified at construction time.

Return true for successful initialisation, false if the number of input channels, step size and/or block size cannot be supported.

Implements Vamp::Plugin.

Reimplemented in Vamp::HostExt::PluginChannelAdapter, Vamp::HostExt::PluginBufferingAdapter, Vamp::HostExt::PluginInputDomainAdapter, and Vamp::HostExt::PluginSummarisingAdapter.

void Vamp::HostExt::PluginWrapper::reset ( ) [virtual]

Reset the plugin after use, to prepare it for another clean run.

Not called for the first initialisation (i.e. initialise must also do a reset).

Implements Vamp::Plugin.

Reimplemented in Vamp::HostExt::PluginBufferingAdapter, Vamp::HostExt::PluginInputDomainAdapter, and Vamp::HostExt::PluginSummarisingAdapter.

InputDomain Vamp::HostExt::PluginWrapper::getInputDomain ( ) const [virtual]

Get the plugin's required input domain.

If this is TimeDomain, the samples provided to the process() function (below) will be in the time domain, as for a traditional audio processing plugin.

If this is FrequencyDomain, the host will carry out a windowed FFT of size equal to the negotiated block size on the data before passing the frequency bin data in to process(). The input data for the FFT will be rotated so as to place the origin in the centre of the block. The plugin does not get to choose the window type -- the host will either let the user do so, or will use a Hanning window.

Implements Vamp::Plugin.

Reimplemented in Vamp::HostExt::PluginInputDomainAdapter.

unsigned int Vamp::HostExt::PluginWrapper::getVampApiVersion ( ) const [virtual]

Get the Vamp API compatibility level of the plugin.

Reimplemented from Vamp::PluginBase.

std::string Vamp::HostExt::PluginWrapper::getIdentifier ( ) const [virtual]

Get the computer-usable name of the plugin.

This should be reasonably short and contain no whitespace or punctuation characters. It may only contain the characters [a-zA-Z0-9_-]. This is the authoritative way for a program to identify a plugin within a given library.

This text may be visible to the user, but it should not be the main text used to identify a plugin to the user (that will be the name, below).

Example: "zero_crossings"

Implements Vamp::PluginBase.

std::string Vamp::HostExt::PluginWrapper::getName ( ) const [virtual]

Get a human-readable name or title of the plugin.

This should be brief and self-contained, as it may be used to identify the plugin to the user in isolation (i.e. without also showing the plugin's "identifier").

Example: "Zero Crossings"

Implements Vamp::PluginBase.

std::string Vamp::HostExt::PluginWrapper::getDescription ( ) const [virtual]

Get a human-readable description for the plugin, typically a line of text that may optionally be displayed in addition to the plugin's "name".

May be empty if the name has said it all already.

Example: "Detect and count zero crossing points"

Implements Vamp::PluginBase.

std::string Vamp::HostExt::PluginWrapper::getMaker ( ) const [virtual]

Get the name of the author or vendor of the plugin in human-readable form.

This should be a short identifying text, as it may be used to label plugins from the same source in a menu or similar.

Implements Vamp::PluginBase.

int Vamp::HostExt::PluginWrapper::getPluginVersion ( ) const [virtual]

Get the version number of the plugin.

Implements Vamp::PluginBase.

std::string Vamp::HostExt::PluginWrapper::getCopyright ( ) const [virtual]

Get the copyright statement or licensing summary for the plugin.

This can be an informative text, without the same presentation constraints as mentioned for getMaker above.

Implements Vamp::PluginBase.

ParameterList Vamp::HostExt::PluginWrapper::getParameterDescriptors ( ) const [virtual]

Get the controllable parameters of this plugin.

Reimplemented from Vamp::PluginBase.

float Vamp::HostExt::PluginWrapper::getParameter ( std::string ) const [virtual]

Get the value of a named parameter.

The argument is the identifier field from that parameter's descriptor.

Reimplemented from Vamp::PluginBase.

void Vamp::HostExt::PluginWrapper::setParameter	(	std::string	,
		float
	)		`[virtual]`

Set a named parameter.

The first argument is the identifier field from that parameter's descriptor.

Reimplemented from Vamp::PluginBase.

Reimplemented in Vamp::HostExt::PluginBufferingAdapter.

ProgramList Vamp::HostExt::PluginWrapper::getPrograms ( ) const [virtual]

Get the program settings available in this plugin.

A program is a named shorthand for a set of parameter values; changing the program may cause the plugin to alter the values of its published parameters (and/or non-public internal processing parameters). The host should re-read the plugin's parameter values after setting a new program.

The programs must have unique names.

Reimplemented from Vamp::PluginBase.

std::string Vamp::HostExt::PluginWrapper::getCurrentProgram ( ) const [virtual]

Get the current program.

Reimplemented from Vamp::PluginBase.

void Vamp::HostExt::PluginWrapper::selectProgram ( std::string ) [virtual]

Select a program.

(If the given program name is not one of the available programs, do nothing.)

Reimplemented from Vamp::PluginBase.

Reimplemented in Vamp::HostExt::PluginBufferingAdapter.

size_t Vamp::HostExt::PluginWrapper::getPreferredStepSize ( ) const [virtual]

Get the preferred step size (window increment -- the distance in sample frames between the start frames of consecutive blocks passed to the process() function) for the plugin.

This should be called before initialise().

A plugin may return 0 if it has no particular interest in the step size. In this case, the host should make the step size equal to the block size if the plugin is accepting input in the time domain. If the plugin is accepting input in the frequency domain, the host may use any step size. The final step size will be set in the initialise() call.

Reimplemented from Vamp::Plugin.

Reimplemented in Vamp::HostExt::PluginInputDomainAdapter, and Vamp::HostExt::PluginBufferingAdapter.

size_t Vamp::HostExt::PluginWrapper::getPreferredBlockSize ( ) const [virtual]

Get the preferred block size (window size -- the number of sample frames passed in each block to the process() function).

This should be called before initialise().

A plugin that can handle any block size may return 0. The final block size will be set in the initialise() call.

Reimplemented from Vamp::Plugin.

Reimplemented in Vamp::HostExt::PluginBufferingAdapter, and Vamp::HostExt::PluginInputDomainAdapter.

size_t Vamp::HostExt::PluginWrapper::getMinChannelCount ( ) const [virtual]

Get the minimum supported number of input channels.

Reimplemented from Vamp::Plugin.

size_t Vamp::HostExt::PluginWrapper::getMaxChannelCount ( ) const [virtual]

Get the maximum supported number of input channels.

Reimplemented from Vamp::Plugin.

OutputList Vamp::HostExt::PluginWrapper::getOutputDescriptors ( ) const [virtual]

Get the outputs of this plugin.

An output's index in this list is used as its numeric index when looking it up in the FeatureSet returned from the process() call.

Implements Vamp::Plugin.

Reimplemented in Vamp::HostExt::PluginBufferingAdapter.

FeatureSet Vamp::HostExt::PluginWrapper::process	(	const float const	inputBuffers,
		RealTime	timestamp
	)		`[virtual]`

Process a single block of input data.

If the plugin's inputDomain is TimeDomain, inputBuffers will point to one array of floats per input channel, and each of these arrays will contain blockSize consecutive audio samples (the host will zero-pad as necessary). The timestamp in this case will be the real time in seconds of the start of the supplied block of samples.

If the plugin's inputDomain is FrequencyDomain, inputBuffers will point to one array of floats per input channel, and each of these arrays will contain blockSize/2+1 consecutive pairs of real and imaginary component floats corresponding to bins 0..(blockSize/2) of the FFT output. That is, bin 0 (the first pair of floats) contains the DC output, up to bin blockSize/2 which contains the Nyquist-frequency output. There will therefore be blockSize+2 floats per channel in total. The timestamp will be the real time in seconds of the centre of the FFT input window (i.e. the very first block passed to process might contain the FFT of half a block of zero samples and the first half-block of the actual data, with a timestamp of zero).

Return any features that have become available after this process call. (These do not necessarily have to fall within the process block, except for OneSamplePerStep outputs.)

Implements Vamp::Plugin.

Reimplemented in Vamp::HostExt::PluginBufferingAdapter, Vamp::HostExt::PluginChannelAdapter, Vamp::HostExt::PluginInputDomainAdapter, and Vamp::HostExt::PluginSummarisingAdapter.

FeatureSet Vamp::HostExt::PluginWrapper::getRemainingFeatures ( ) [virtual]

After all blocks have been processed, calculate and return any remaining features derived from the complete input.

Implements Vamp::Plugin.

Reimplemented in Vamp::HostExt::PluginBufferingAdapter, and Vamp::HostExt::PluginSummarisingAdapter.

template<typename WrapperType >

WrapperType* Vamp::HostExt::PluginWrapper::getWrapper ( ) [inline]

Return a pointer to the plugin wrapper of type WrapperType surrounding this wrapper's plugin, if present.

This is useful in situations where a plugin is wrapped by multiple different wrappers (one inside another) and the host wants to call some wrapper-specific function on one of the layers without having to care about the order in which they are wrapped. For example, the plugin returned by PluginLoader::loadPlugin may have more than one wrapper; if the host wanted to query or fine-tune some property of one of them, it would be hard to do so without knowing the order of the wrappers. This function therefore gives direct access to the wrapper of a particular type.

Definition at line 116 of file PluginWrapper.h.

References getWrapper().

Referenced by getWrapper(), and runPlugin().

virtual std::string Vamp::Plugin::getType ( ) const [inline, virtual, inherited]

Used to distinguish between Vamp::Plugin and other potential sibling subclasses of PluginBase.

Do not reimplement this function in your subclass.

Implements Vamp::PluginBase.

Definition at line 430 of file vamp-sdk/Plugin.h.
